LM03 Bushing (UU-standard / LUU-long)
LM03 - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.
LM03UU - standard type
LM03LUU - long type
Cross references:
SM3GUU (Nippon bearing)
SM3GWUU (Nippon bearing)

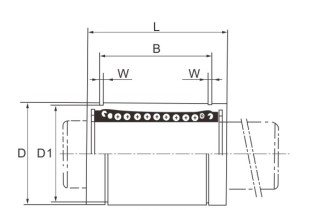

Inner Diameter (d): 3 mm.
Outer Diameter (D): 7 mm.
Length UU/LUU (L): 10 mm / 19mm
Dynamic Load Rating UU/LUU (C): 88.2 N / 139 N
Static Load Rating UU/LUU (C₀): 108 N / 216 N
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.

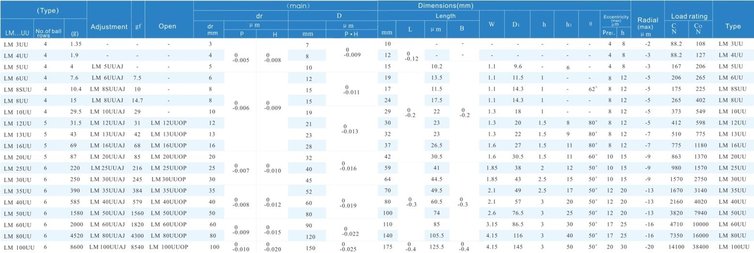

Specifications
| Linear ball bushing type | UU (Standard) or LUU (Long) |
| Shaft diameter | 03 |
