LM05UU Bushing
LM05UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.
Cross references:
LM5UU (FLI)
SM5GUU (NB)
LM05UU (SAMICK)

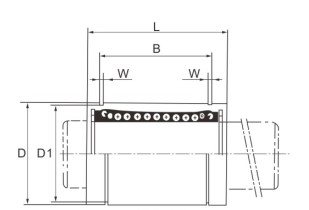

Inner Diameter (d): 5 mm.
Outer Diameter (D): 10 mm.
Length (L): 15 mm.
Dynamic Load Rating (C): 167 N.
Static Load Rating (C₀): 207 N.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Shaft diameter | 05 |
