LM30UU Bushing
LM30UU - linear ball bearing bushing is engineered to ensure smooth and accurate linear motion, minimising friction and maximising operational lifespan.
Cross references:
LM30UU (FLI)
SM30GUU (NB)
LM30UU (SAMICK)
LM304564 (IKO)

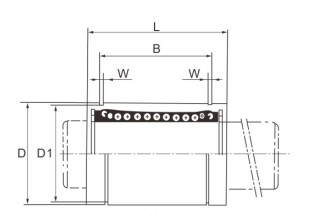

Inner Diameter (d): 30 mm.
Outer Diameter (D): 45 mm.
Length (L): 64 mm.
Dynamic Load Rating (C): 1570 N.
Static Load Rating (C₀): 2750 N.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Shaft diameter | 30 |
