SBR16-6000-h6-C45 Shaft

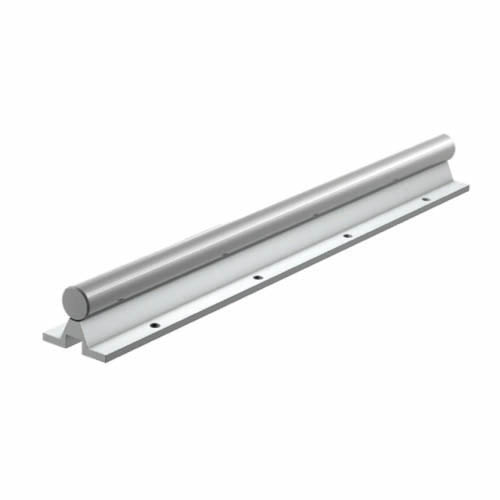

Chrome plated shaft with shaft support
Cross References:
R1014 016 00 (Rexroth)
FTSN16GW (FLI)
TSNW16 (INA)
Diameter: 16 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45 hardened steel.
End machining features:
- Cut to length
- Axial threading
- Radial threading
- End milling
- V-groove cutting
- Circlip groove cutting
- Thread cutting
- Parallel end milling
- Per customer blueprints.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Shaft diameter | 16 |
