WV50-6000-h6 Shaft

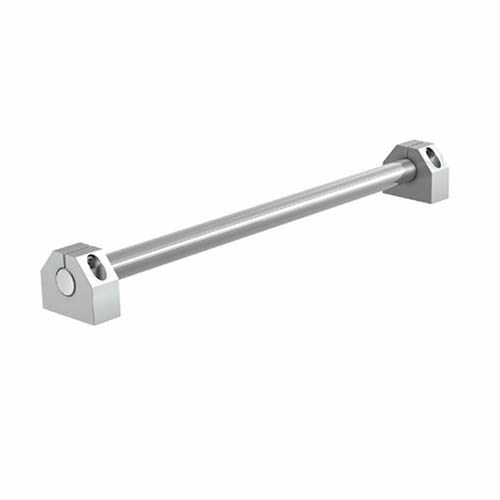

WV50-6000-h6-C45 - precision linear chrome-alloyed shaft with shaft blocks.
Cross References:
R1000 050 00 (Rexroth)
LJM 50 (Ewellix)
W 50 (FLI)
W50 (INA)
Diameter: 50 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.
Material options: AISI 304, AISI 440, GCr15, C53, C60, X40Cr14,100Cr6, X90CrMoV18.
Machining features: - Cut to length - Axial threading - Radial threading - End milling - V-groove cutting - Circlip groove cutting - Thread cutting - Parallel end milling - Per customer blueprints.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Rolled shaft | |
|---|---|
| Steel | C45 (Standard) or Cf53 or X90CrMoV18 (1.4112, AISI 440B) or X46Cr13 (1.4034, AISI 420B) |
| Uncategorized | |
|---|---|
| Shaft diameter | 50 |
